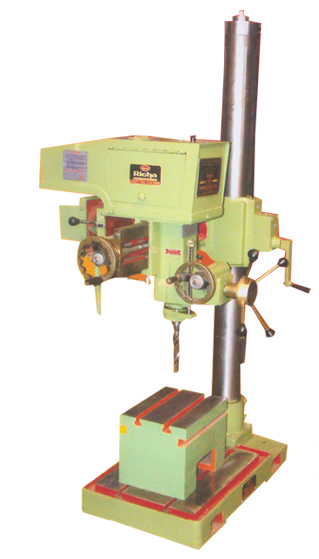

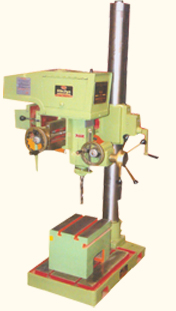

Drilling Machine |
Model |
Unit |
| 1 |
Drilling Capacity (In Steel) |
25 |
mm |
| |
|
|
|
|
| 2 |
Column Diameter |
114 |
mm |
| |
|
|
|
|
| 3 |
Center of Spindle & Column |
450 |
mm |
| |
|
|
|
|
| 4 |
Max. Distance (Nose to Base) |
1100 |
mm |
| |
|
|
|
|
| 5 |
Max. Distance (Nose to Table) |
850 |
mm |
| |
|
|
|
|
| 6 |
Taper in Spindle |
M. T. - 03 |
mt |
| |
|
|
|
|
| 7 |
Spindle Travel |
170 |
mm |
| |
|
|
|
|
| 8 |
Quill-Dia Meter |
¢63.5 |
nos |
| |
|
|
|
|
| 9 |
Nos. of Speed |
08 |
nos |
| |
|
|
|
|
| 10 |
Range of Speed |
75to2070 |
rpm |
| |
|
|
|
|
| 11 |
Table Size |
310x2070
x250
|
mm |
| |
|
|
|
|
| 12 |
Base Size |
500x380 |
mm |
| |
|
|
|
|
| 13 |
Overall Base Size |
740x450
x110
|
mm |
| |
|
|
|
|
| 14 |
V-Belt Section |
B-40 |
inch |
| |
|
|
|
|
| 15 |
Electric Motor 960 Rpm |
1.0 H/p - 960 rpm |
hp |
| |
|
|
|
|
| 16 |
Wooden Case Size (L x W x H) |
1300x1000
x1600 |
mm |
| |
|
|
|
|
| 17 |
Range of Power Feed |
Fine Feed |
Manual |
| |
|
|
|
|
| 18 |
Weight (Approx) Without Electrical |
270 |
kg |
